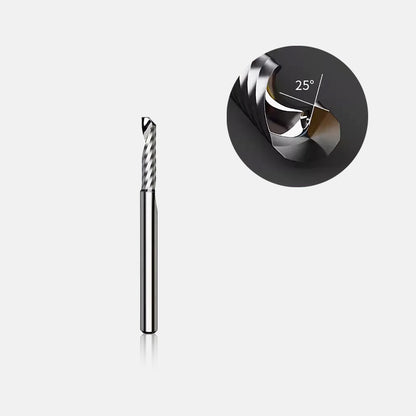

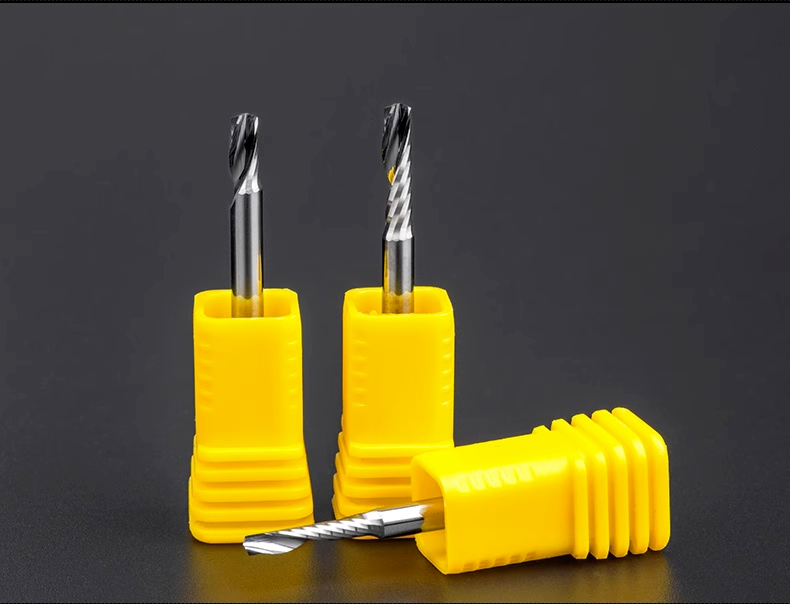

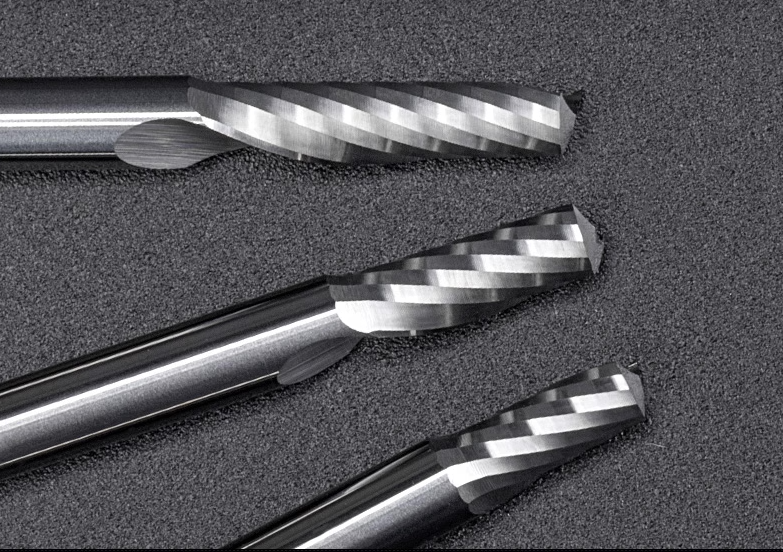

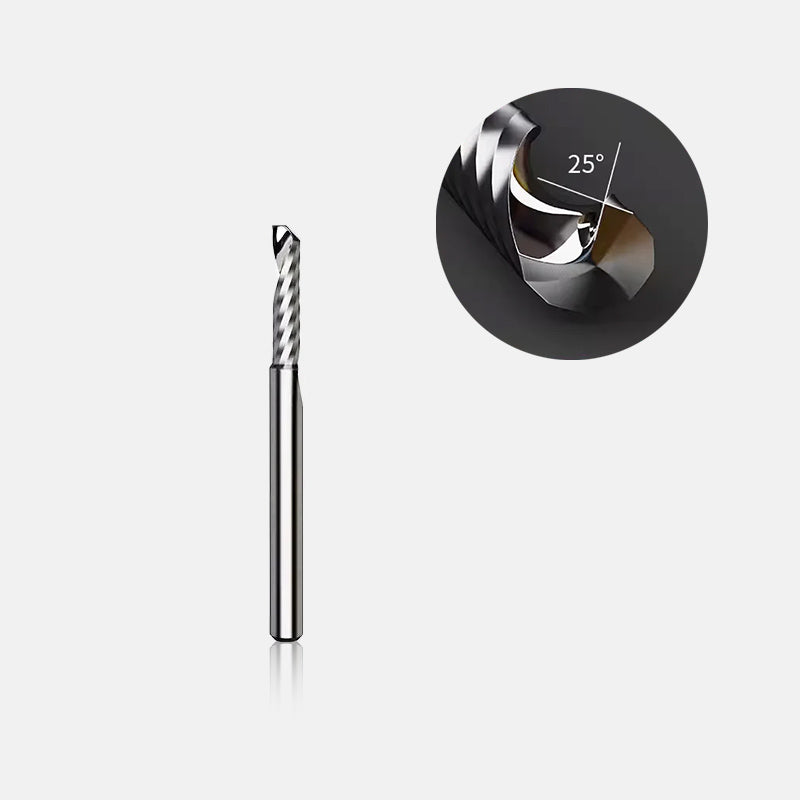

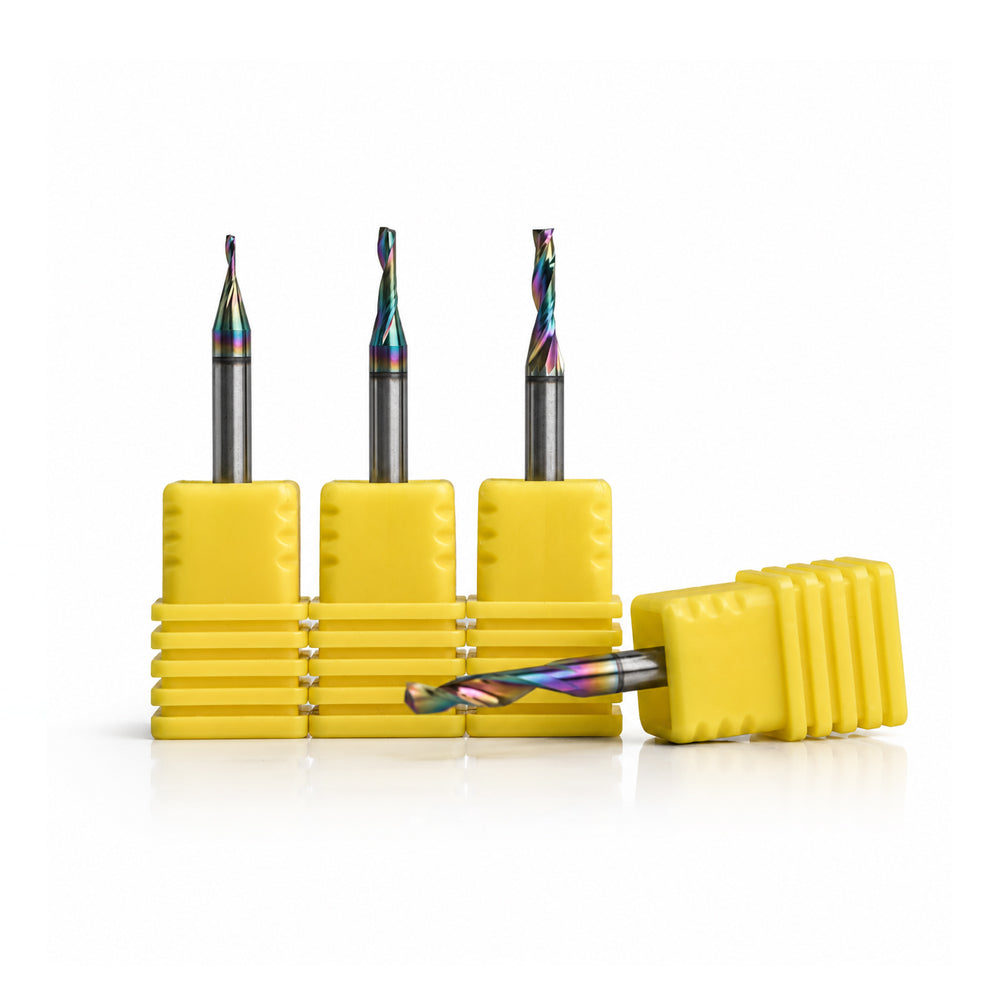

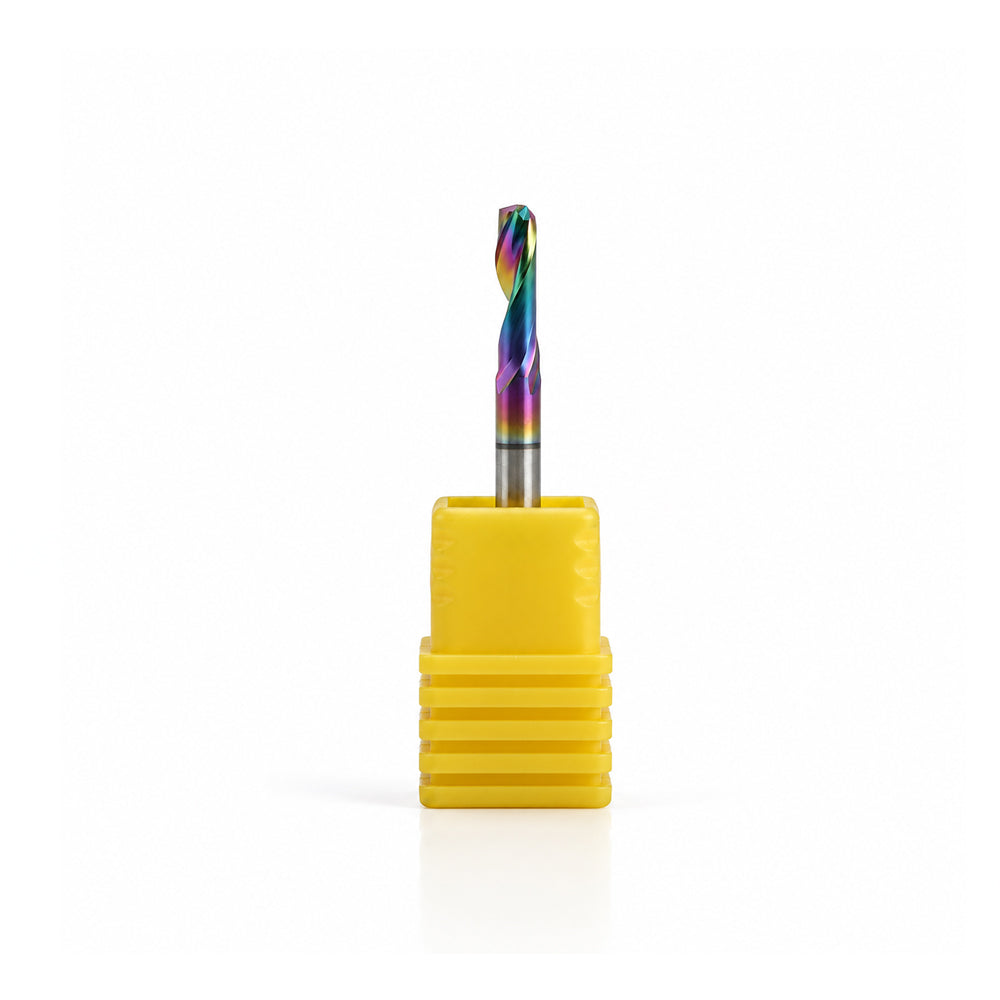

Spiral 'O' Single Flute Bit for Metal - 1/8″ Shank

The Spiral 'O' Single Flute Bit allows for superior chip evacuation, reducing the risk of chip re-cutting and ensuring a cleaner cut, even for non-ferrel metals like aluminum and brass.

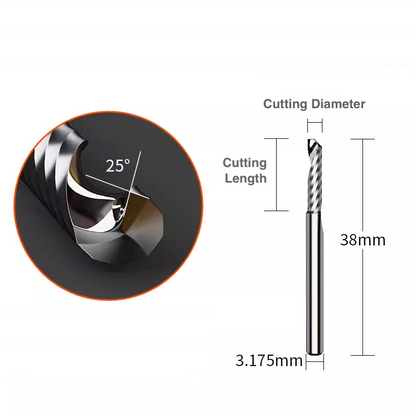

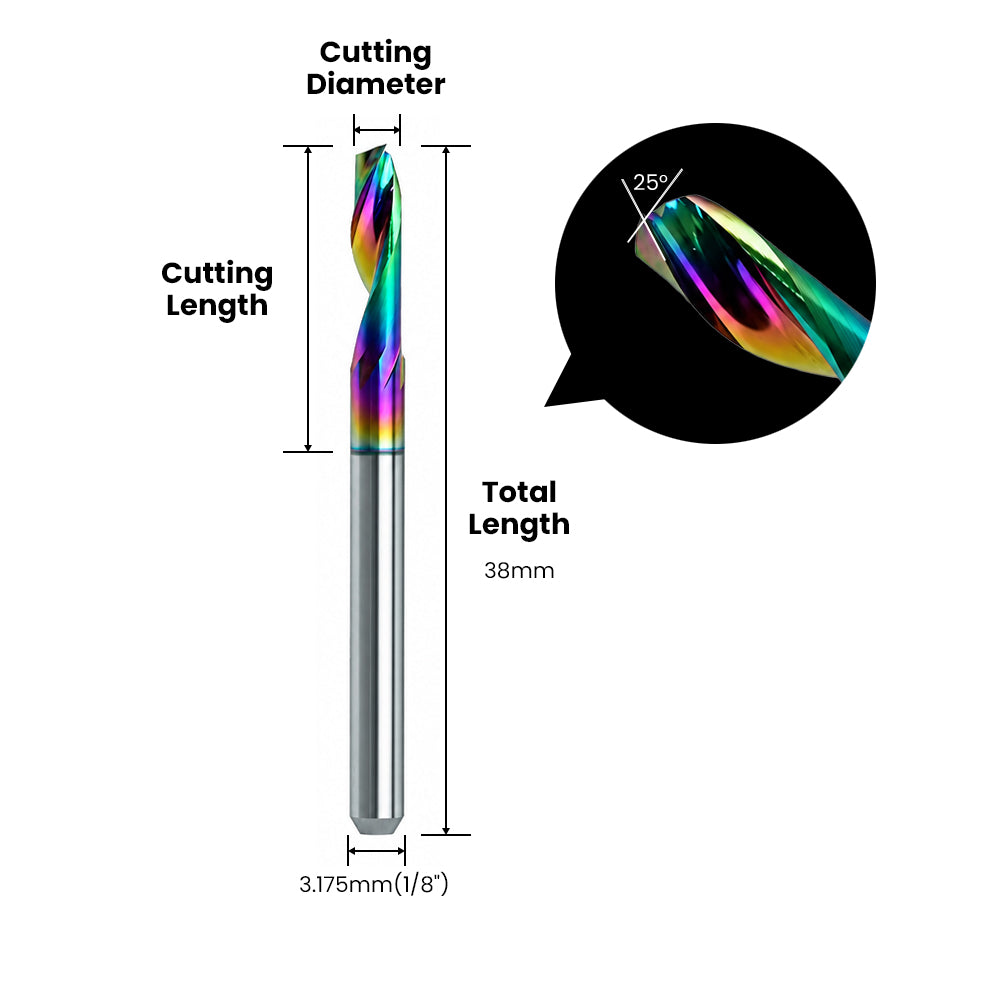

Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide

Applications:
Sheet/Plate/Block Contour cutting, Face cleaning, Pocket milling, and Hole boring, etc.

Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
1*3mm Flat End(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:300 PFeed:100 DOC:0.05	-	RPM:12000 Feed:300 PFeed:100 DOC:0.05	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.5*6mm Flat End(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:300 PFeed:100 DOC:0.05	-	RPM:12000 Feed:300 PFeed:100 DOC:0.05	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
2*8mm Flat End(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.15	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.5*12mm Flat End(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
3.175*12mm Flat End(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
