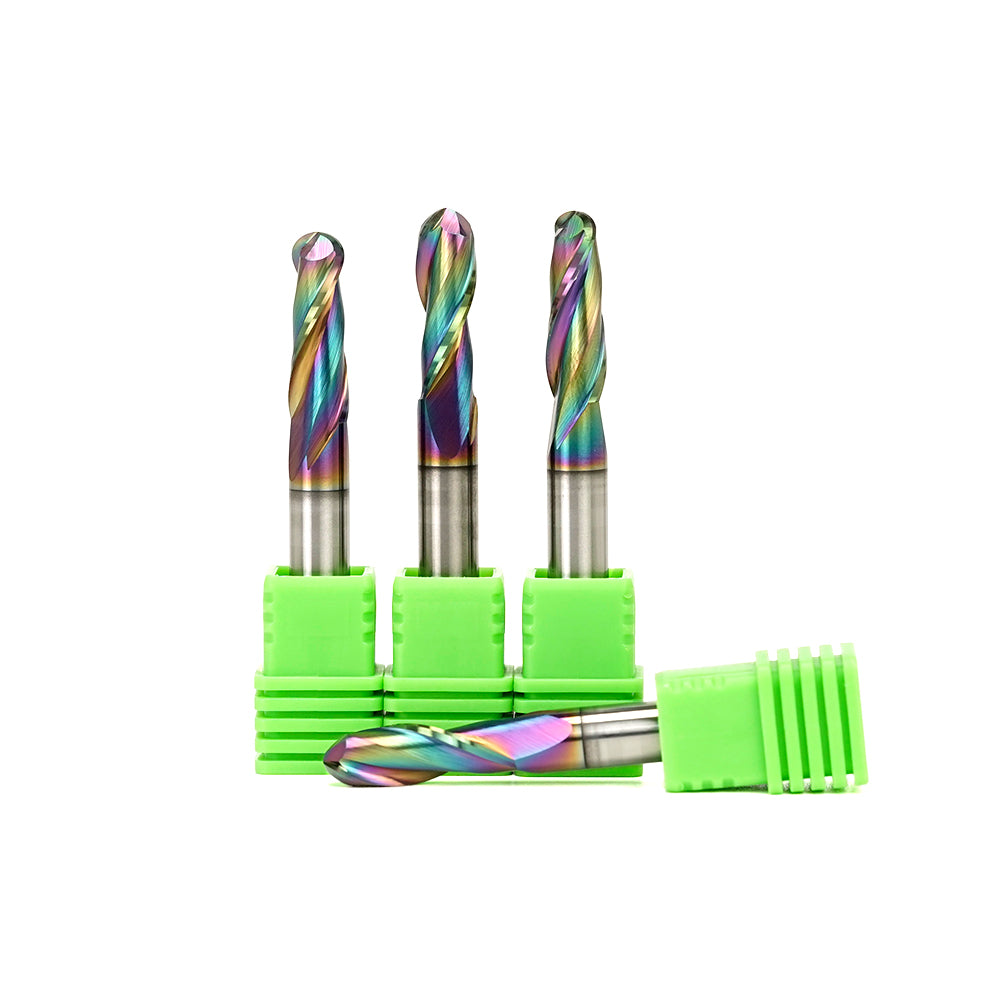

Two Flute Ball Nose Bit for Metal - 6mm (15/64″) Shank
$27.99 USD
Tax included.Shipping calculated at checkout.
In stock, ready to ship
Description
The Two Flute Ball Nose Bit for Metal allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.
Specifications:

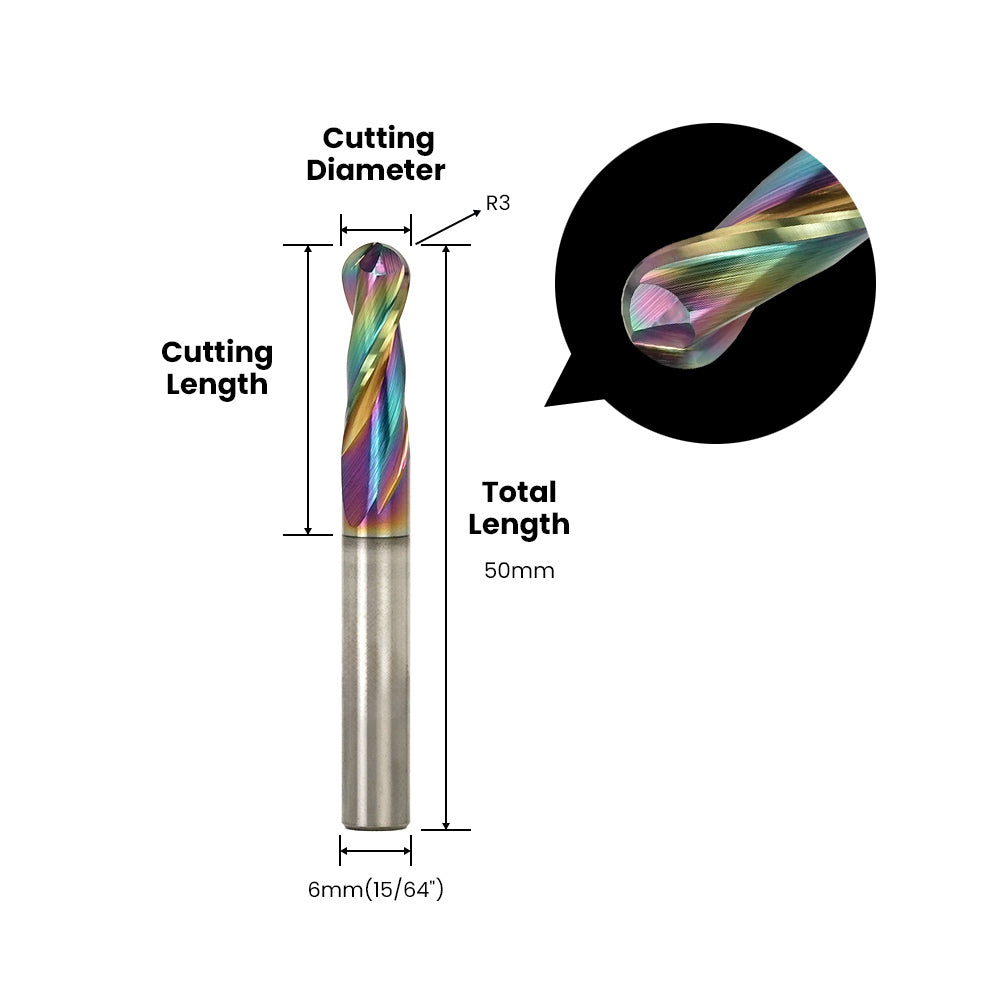

Shank Diameter: 6mm (15/64″)
Total Length: ~ 50mm
Material: Solid Carbide
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.
Two Flute Ball Nose Bit for Metal - 6mm (15/64″) Shank
$27.99 USD
Tool Reference Parameters:
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
| Tool | Aluminum | Brass | Carbon Fiber | Copper | Hardwood | PCB | Plastic | Softwood |
|---|---|---|---|---|---|---|---|---|
| 6mm * 18mm ball nose(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 | — |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:500 PFeed:200 DOC:1 | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
