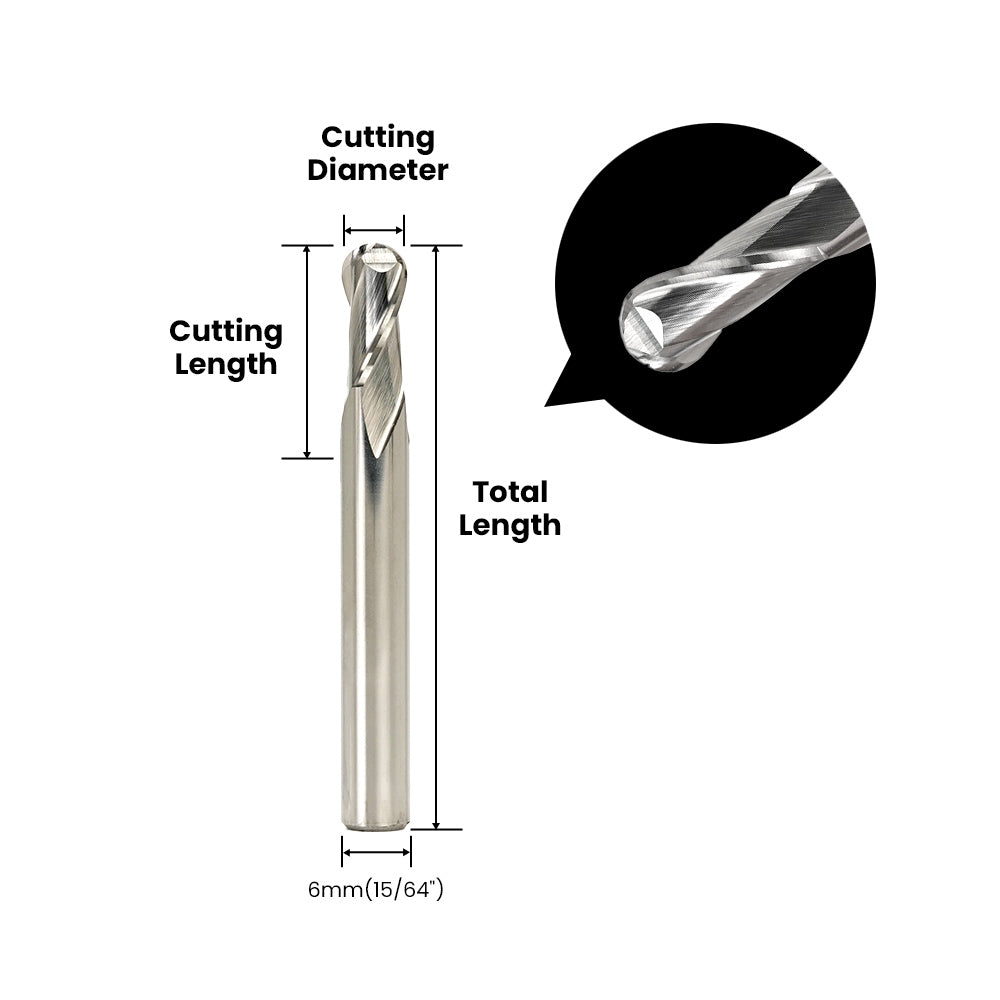

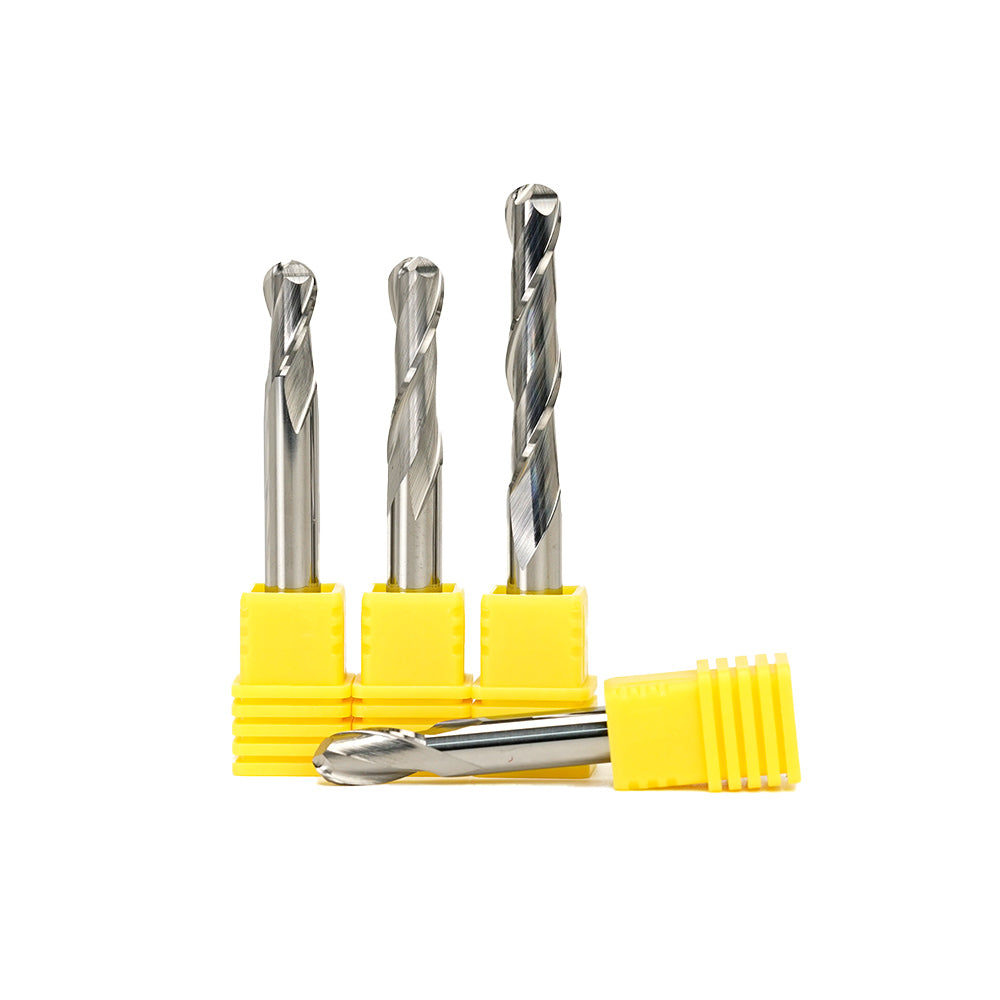

Two Flute Ball Nose Bit - 6mm (15/64") Shank
$11.99 USD
Tax included.Shipping calculated at checkout.
In stock, ready to ship
Description
The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.
Specifications:
Shank Diameter: 6mm (15/64")
Material: Solid Carbide
| Spec | 6mm * 12mm | 6mm * 22mm | 6mm * 32mm |
| Total Length | 50 mm | 50 mm | 60 mm |
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood, Plastics, Composite materials, etc.
Two Flute Ball Nose Bit - 6mm (15/64") Shank
$11.99 USD
Tool Reference Parameters:
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
| Tool | Aluminum | Brass | Carbon Fiber | Copper | Hardwood | PCB | Plastic | Softwood |
|---|---|---|---|---|---|---|---|---|
| 6mm * 12mm ball nose | — | — | — | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 6mm * 22mm ball nose | — | — | — | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 6mm * 32mm ball nose | — | — | — | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 | — |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
