Single Flute Engraving Bit - 1/8″ Shank
Single Flute Engraving Bit - 1/8″ Shank

    Single Flute Engraving Bit - 1/8″ Shank

    $12.90
    • Barcode:
    DESCRIPTION

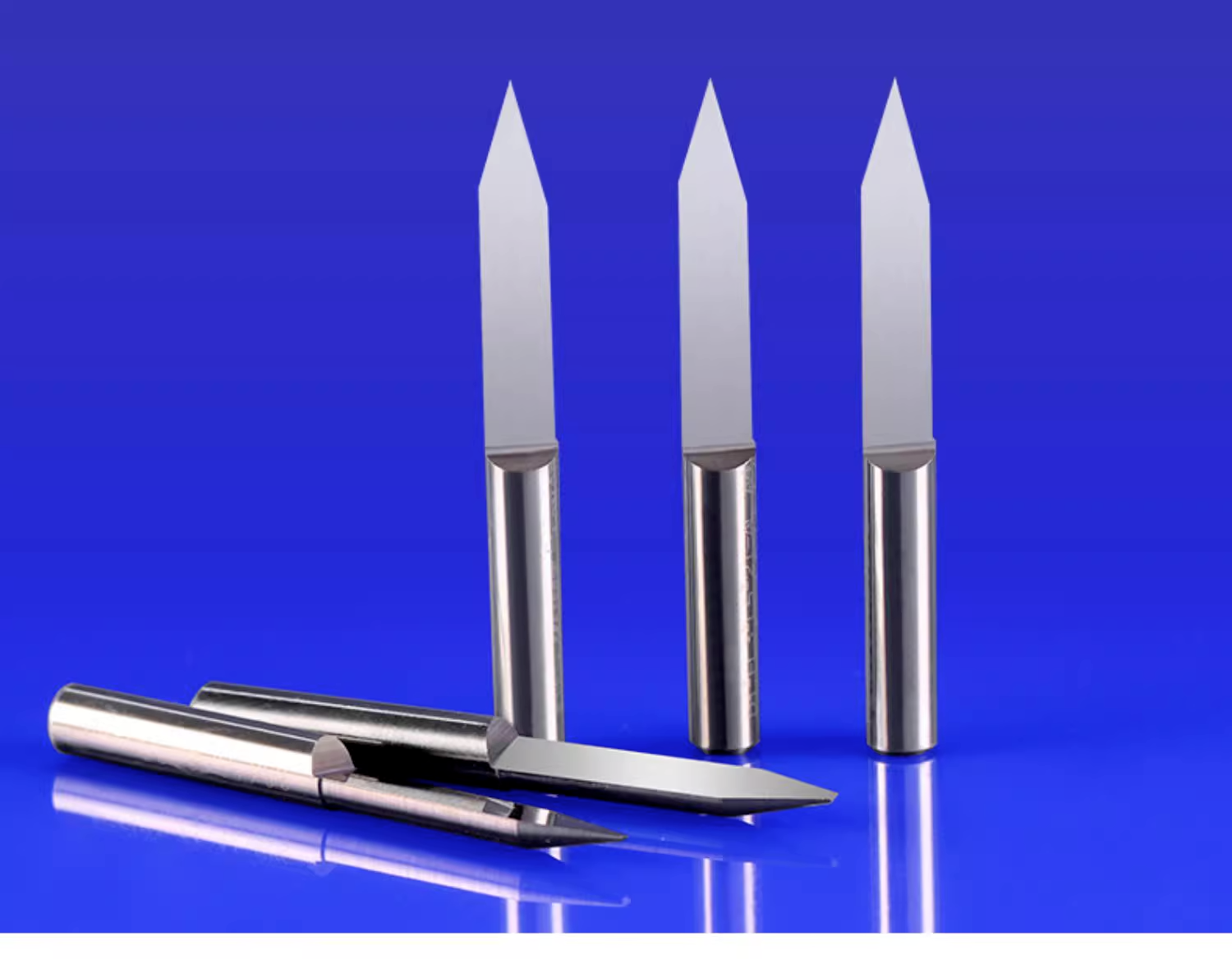

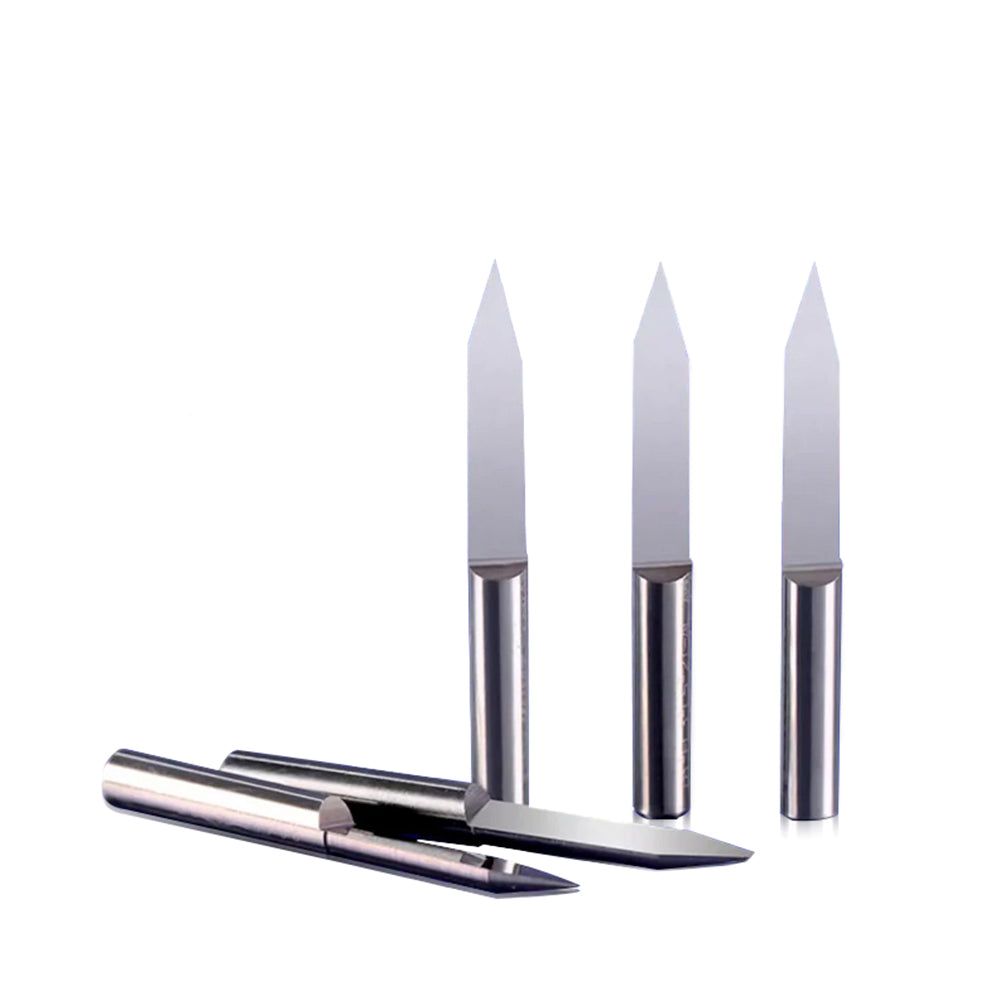

    The Single Flute Engraving Bit typically features a single cutting edge that extends from the tip of the bit. This singular flute creates a clean, well-defined edge in the material being engraved, ideal for intricate detailing.

    Specifications:

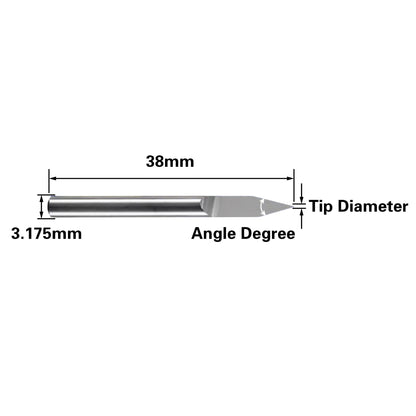

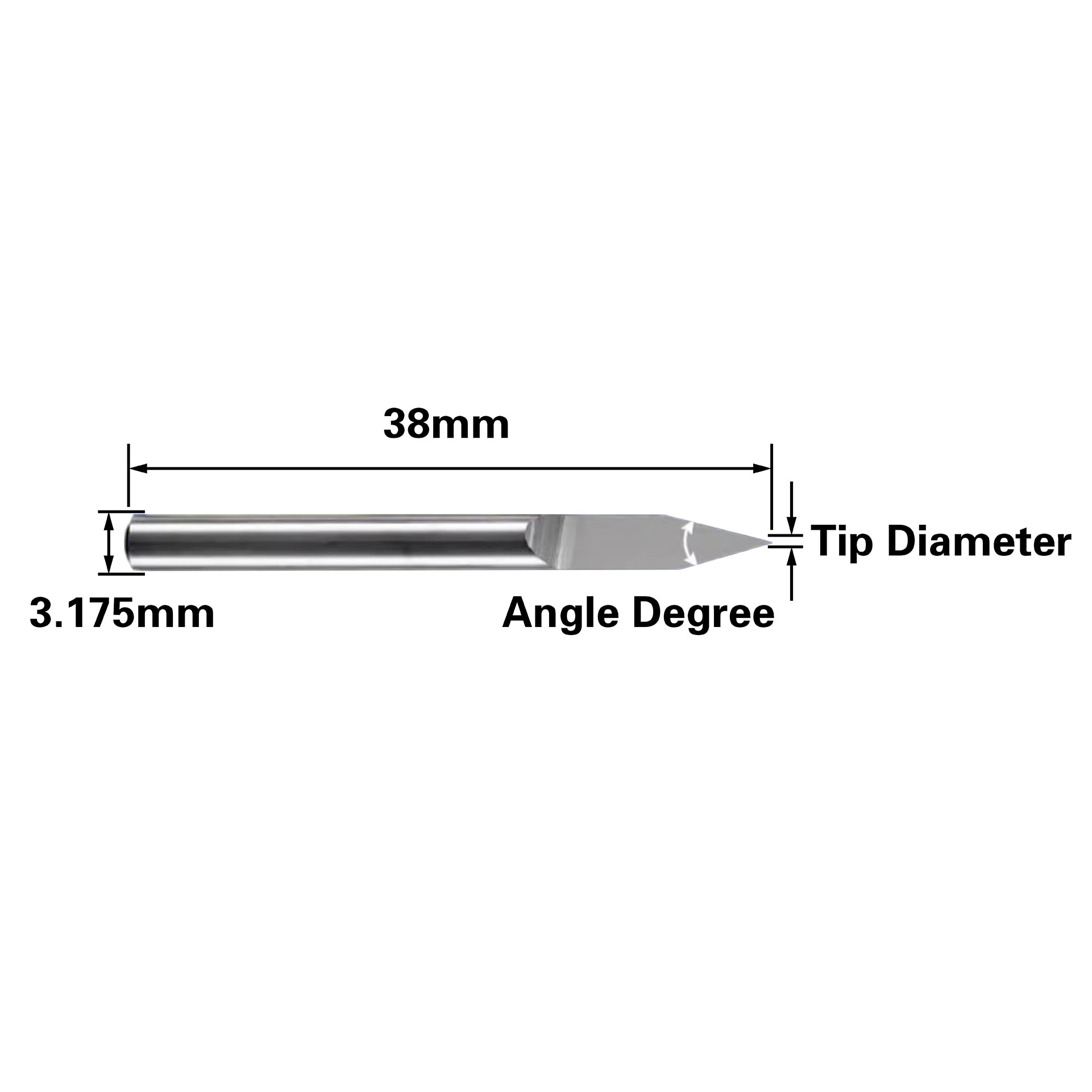

    Shank Diameter: 3.175mm
    Total Length: ~ 38mm
    Material: Solid Carbide

    Applications:
    Curve surface milling, Relief milling, Small text engraving, etc.

    Materials:
    Wood, Plastics, Composite materials, etc.


    Tool Reference Parameters:

    * RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
    PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

    Tools Aluminum Brass Carbon Fiber Copper Hardwood PCB Plastic Softwood
    0.1mm*30° Engraving - - - - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    RPM:12000
    Feed:1000
    PFeed:500
    DOC:2
    0.2mm*30° Engraving - - - - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    RPM:12000
    Feed:1000
    PFeed:500
    DOC:2
    0.3mm*30° Engraving - - - - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    RPM:12000
    Feed:1000
    PFeed:500
    DOC:2
    0.4mm*30° Engraving - - - - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    RPM:12000
    Feed:1000
    PFeed:500
    DOC:2
    0.5mm*30° Engraving - - - - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    - RPM:12000
    Feed:1000
    PFeed:500
    DOC:1
    RPM:12000
    Feed:1000
    PFeed:500
    DOC:2
