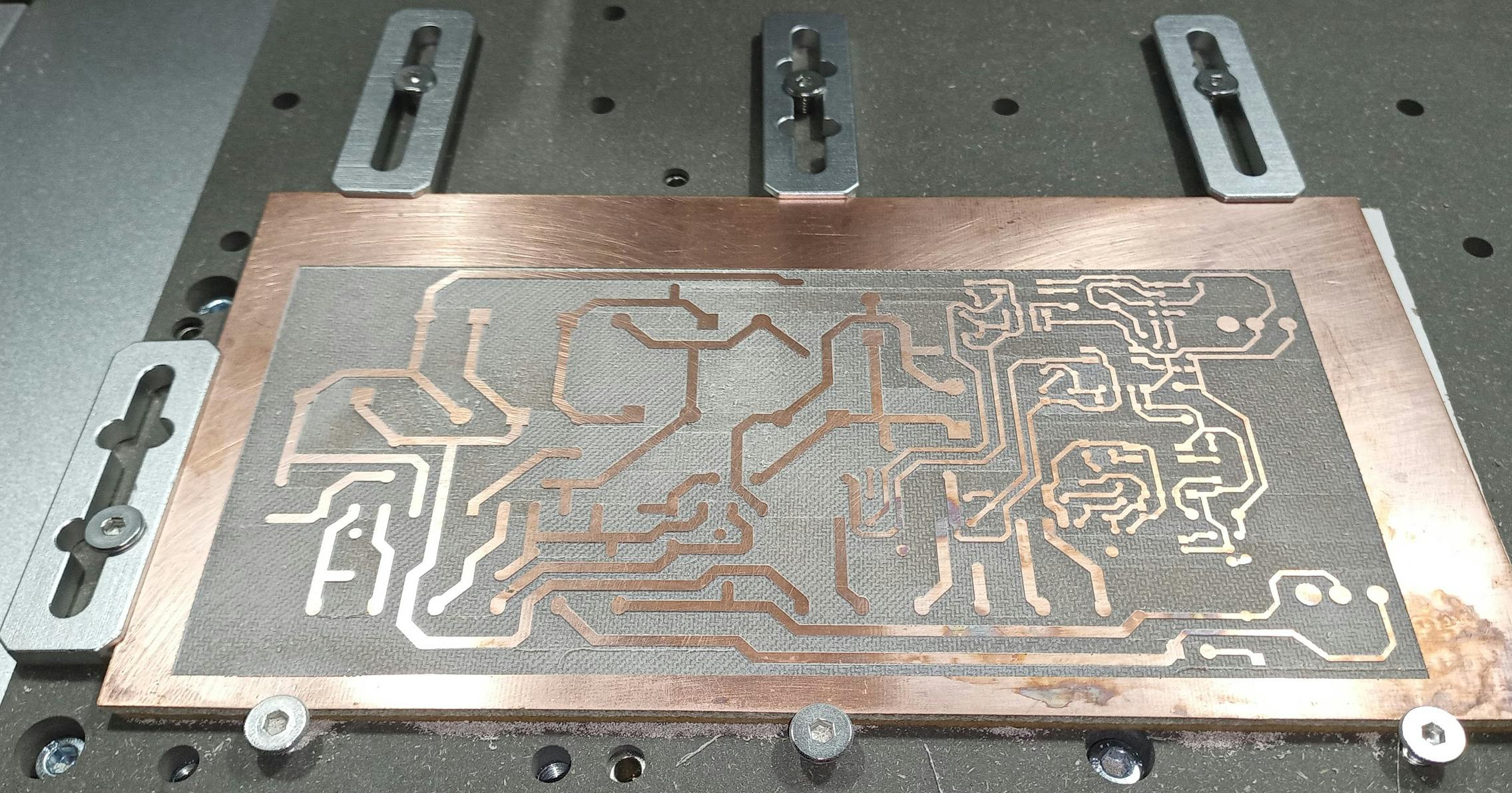

Without the automatic functions, you need to manually change every tool during every job and manually do the probing work, which is very tedious and time-consuming when milling PCB or other complex objects.
Whether you are doing auto-leveling, cutting, cleaning, drilling, or carving, Cavera can automatically change the right tool for the right job seamlessly, making sure you get the best result. Just focus on your design, let Carvera do the rest.
Normally, desktop CNC machines are not equipped with dust collection functions because of the size and limited space.

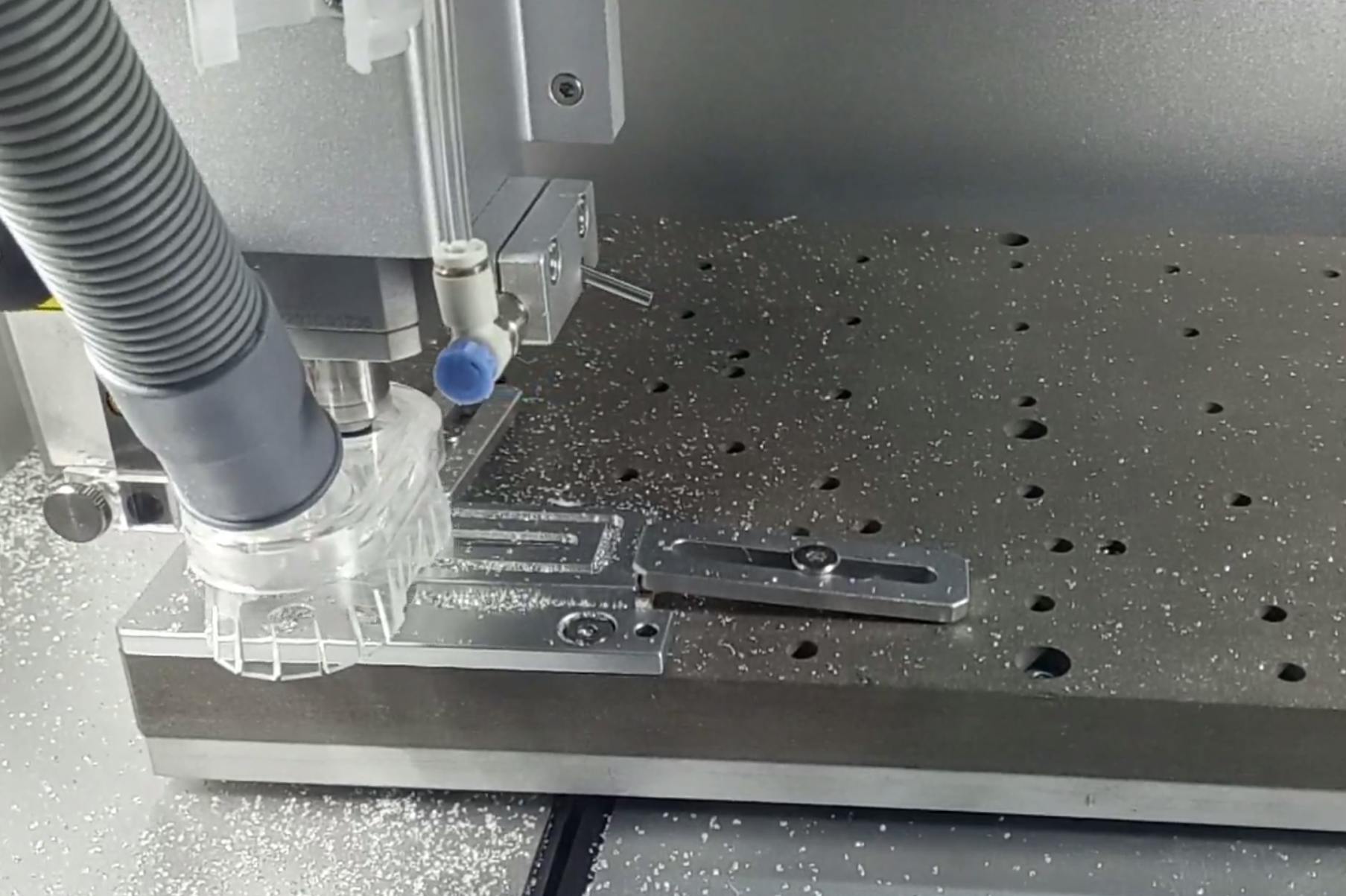

Through a very innovative way, we completely built the dust collection system inside the machine, let your projects start clean and finish clean.
Laser engraving is a unique and amazing technology that lets you leave your mark and draw beautiful patterns on your product.
With the integrated 2.5W diode laser module, you can seamlessly switch between CNC and Laser functions and engrave a wide variety of materials including paper, wood, plastic, leather, fabric, etc.
One more axis, much more possibilities, with the 4th axis module, you can machine cylindrical items, double sided objects, and 3D shapes.

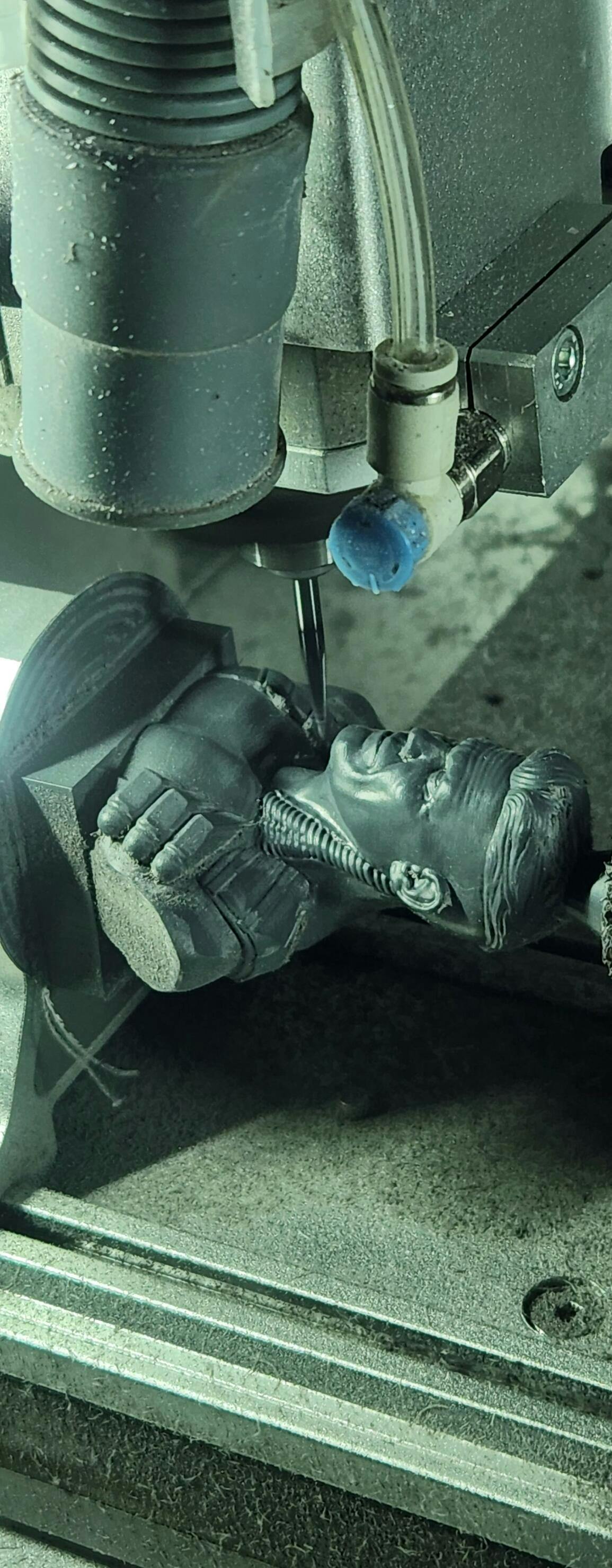

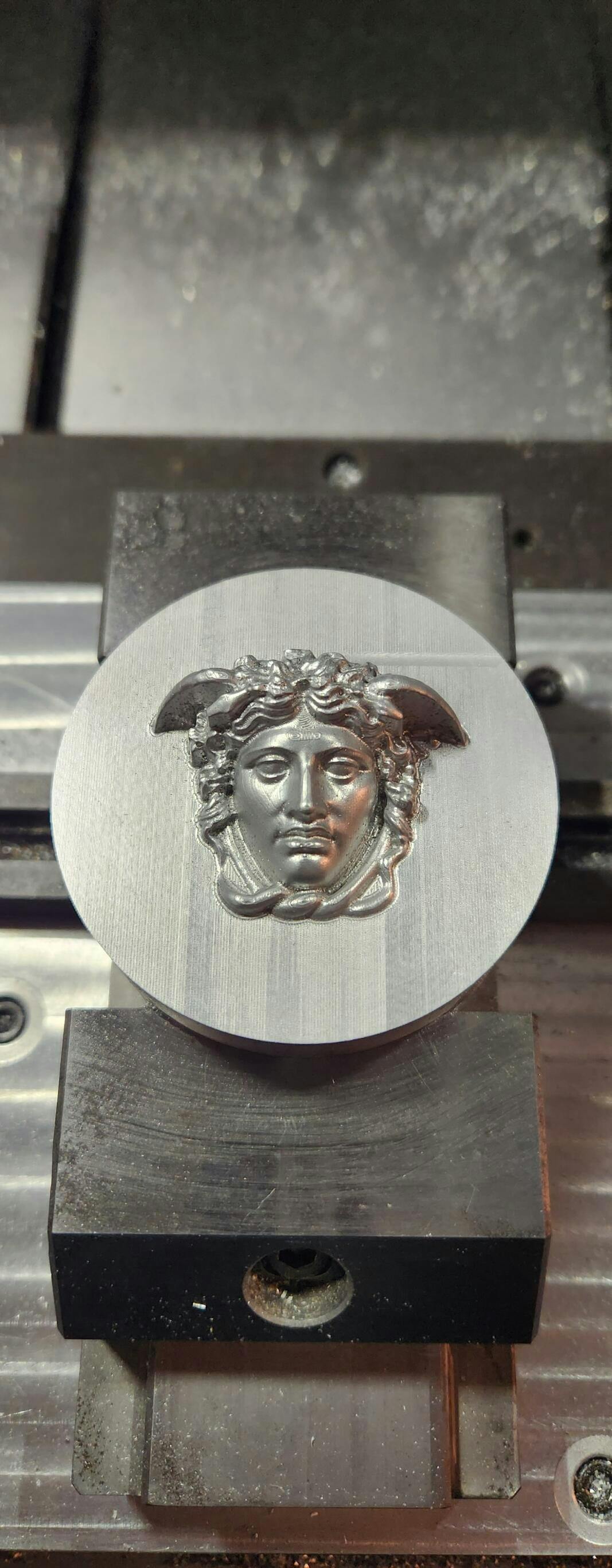

Carvera provides you with truly 4th axis simultaneous machining, you can make real 3D stereo models which can only be made by 3D printers. Here, you are not limited by materials, plastic, wood, even metal, you can make beautiful yet realistic crafts.
The main structure is composed of metal alloy and the shell is made of stainless steel and engineering ABS+Polycarbonate, which gives you a beautiful appearance while remaining sturdy and durable.
The fully enclosed frame keeps the smallest chips away from your shop, reduces the noise, and keeps you safe.
All axes of Carvera use high-quality linear rails and ball screws for vibration-free stability and precise motion.
Carvera provides more precise, smooth, and durable operation while still being quiet.
For the first time in the world, Carvera brings a closed-loop system into a compact desktop form factor, for complete control and precision.
Furthermore, in case the machine encounters a crash, the motor will stop immediately and prevents damaging the tool and the machine.
Every Carvera is fully assembled, fine tuned and tested before it leaves our factory. We will fully test the software and hardware, and even leave every Carvera running for several days before completing quality control and shipping it out to you.
|Work area (3 axis) :||36cm(X) * 24cm(Y) * 14cm(Z) / 14.2in * 9.4in * 5.5in||Gantry clearance:||12cm / 4.7in|
|Work area (4 axis) :||9.2cm(Diameter) * 24cm(Length) / 3.6in * 9.4in||Max height (Lid open):||84cm / 33in|
|Footprint:||58cm(Width) * 52cm(Depth) * 54cm(Height) /
22.8in * 20.5in * 21.3in
|Weight:||50kg / 110lbs (approx)|
|Power:||200 watt||Collet:||Custom collet with ⅛in integrated (optional: ¼in, 6mm, 4mm)|
|Speed:||0 - 15000 RPM with closed-loop control||Tool library size :||6|
|Cooling:||Air-cooled controlled by temperature monitor|
|Drive system:||Ball screws with linear rails||Max traverse:||600cm / 236in per minute|
|Motors:||Servo motors for X/Y/Z axis, Nema17 stepper motor for A axis|
|Spindle runout:||< 0.01mm / 0.0003in||Motor resolution:||0.005 / 0.0002in|
|Machining accuracy:||0.05mm / 0.002in (May vary by different situation)|
|Dust control:||Integrated dust collection system||Dust tank volume:||0.8 liter|
|Laser power:||2.5 Watt||Laser Type:||445nm semiconductor diode laser|
|100-120VAC / 200-240VAC @ 50/60Hz|
|Wood:||Hardwoods, softwoods, MDF, plywoods, etc.||Plastic:||Foam, PVC, ABS, Acrylic, PC, HDPE, etc.|
|Composite materials:||Carbon fiber, FR4, etc.||Non-Ferrous metals:||Aluminum, brass, copper, etc.|
|Laser engrave materials:||Wood, plastic, fabric, leather, cardboard, etc.|
|Controller:||Dedicated software supports CARVERA functions||Controller connectivity:||USB / WIFI|
|Controller OS:||iOS, Andriod, Mac OS, Windows, Linux, etc.||Dedicated CAM software:||*Under development|
|Compatible CAD/CAM software:||Fusion360, SolidWorks, AutoCad, VCarve Pro, Aspire, Illustrator, etc.|
